XL-M-XS Farmer's Market
A farmer's market in Hazelwood Green using a Haus-in-Haus organizational strategy with catenary-curve glulam and CLT structure.
Year
2023
Location
Hazelwood Green, Pittsburgh, PA
Program
Commercial / Public
Area
30,000 sq ft (XL) + 3,000 sq ft (M) + XS booths
Status
Studio Project
Description
This project proposes a farmer's market for the Hazelwood Green area of Pittsburgh. Utilizing a Haus-in-Haus theory, the market consists of a 30,000 square foot XL unit, housing a 3,000 square foot M unit for MEP systems, as well as being populated with many 300 square foot XS units for the stalls of the market.
The project consists of a glulam-shaped system, covered with CLT panels, and enclosed on the sides with glass curtain walls following the XL's catenary curve structure. The roofing system uses terne-coated steel over polyiso insulation and CLT panels, with LVL structural members.
Led the design of XS booth units and the facade of the XL market structure. Created construction documents intended for engineers and construction teams, and collaborated with consultants on facade, structural, and MEP systems.
Credits
Course
XL-M-XS Studio
Studio Coordinator
Steve Lee
Structure
Glulam / CLT / Catenary Curve
Materials
Terne-Coated Steel, CLT, LVL, Glass Curtain Wall

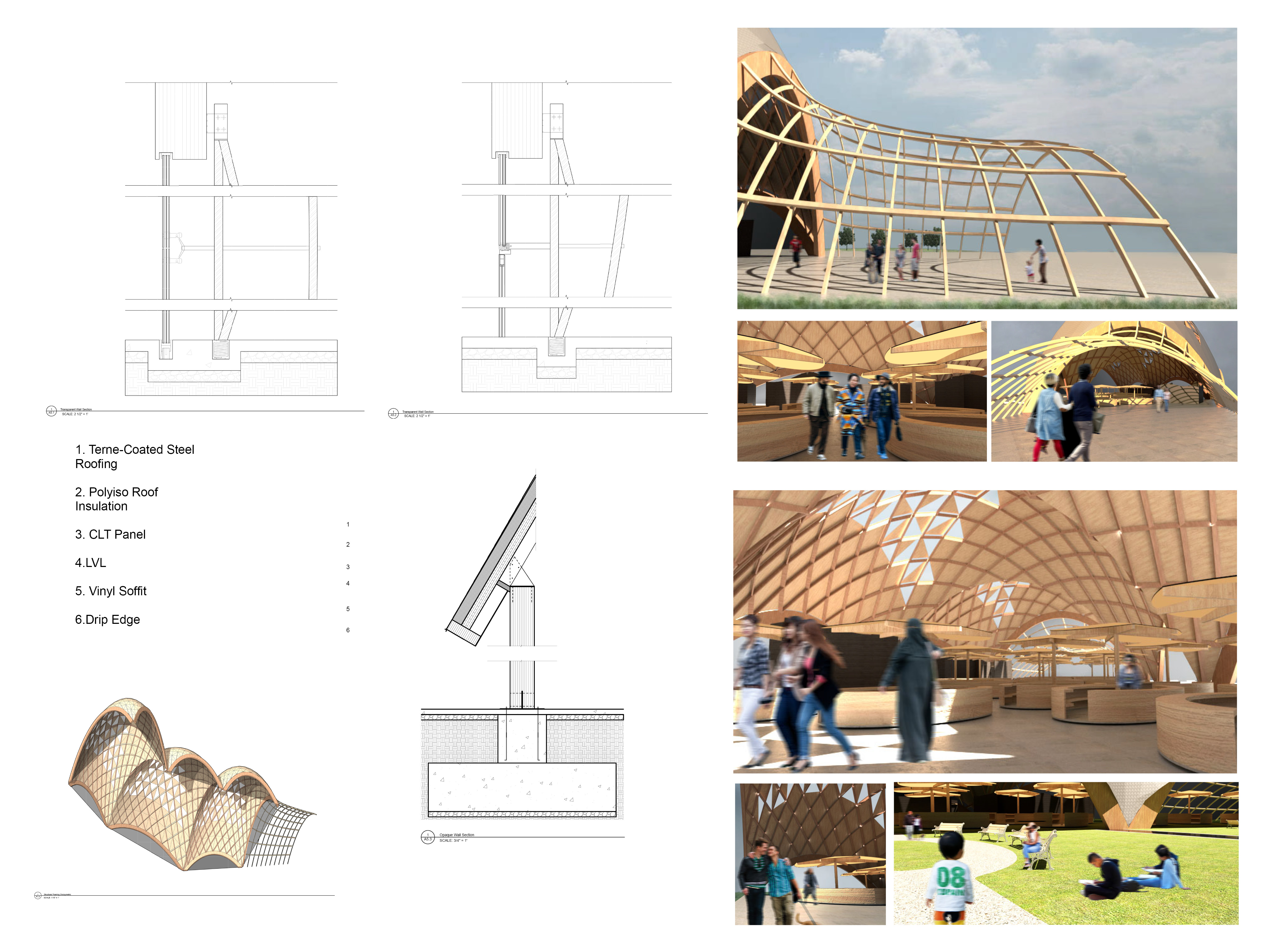

Drawings & Details
